Performance comparison
Which door set meets your number?
Pick what the project needs to achieve and see the tested configuration that delivers it. Every figure comes from the independent laboratory reports for the SONIG door sets.
Step one
What does the position have to achieve?
Step two
The whole comparison.
Everything we publish, in one place. A rating belongs to the assembly as tested and installed as detailed. See test evidence and certification for what that means on site.
| Configuration | Rw | STC | Suits | Report |
|---|---|---|---|---|
| Single leaf door set | 41 dB | 41 | Guest rooms, consulting rooms, offices, plant rooms | Available |
| Double leaf door set | 37 dB | 37 | Suites, meeting rooms, wide openings | Available |
| Interconnecting door set | 49 dB | 49 | Between two rooms that can both be occupied | Available |
| Interconnecting door set with acoustic liner | up to 54 dB | not stated | Higher separation between adjoining rooms | Available |
Fire resistance is quoted separately, per configuration, in writing on the quotation. See fire-resistant door sets.
Enquiries
Ready to price your project.
Send us your requirements and we will come back with pricing and technical support, including drawings as required.
Selected work

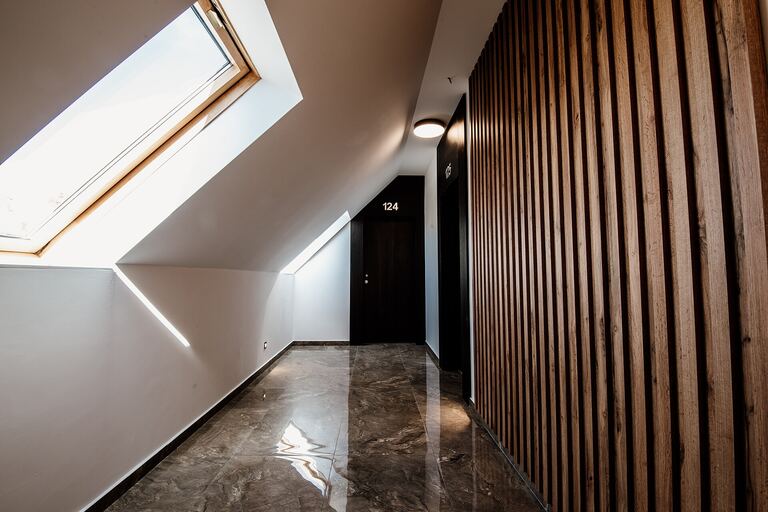

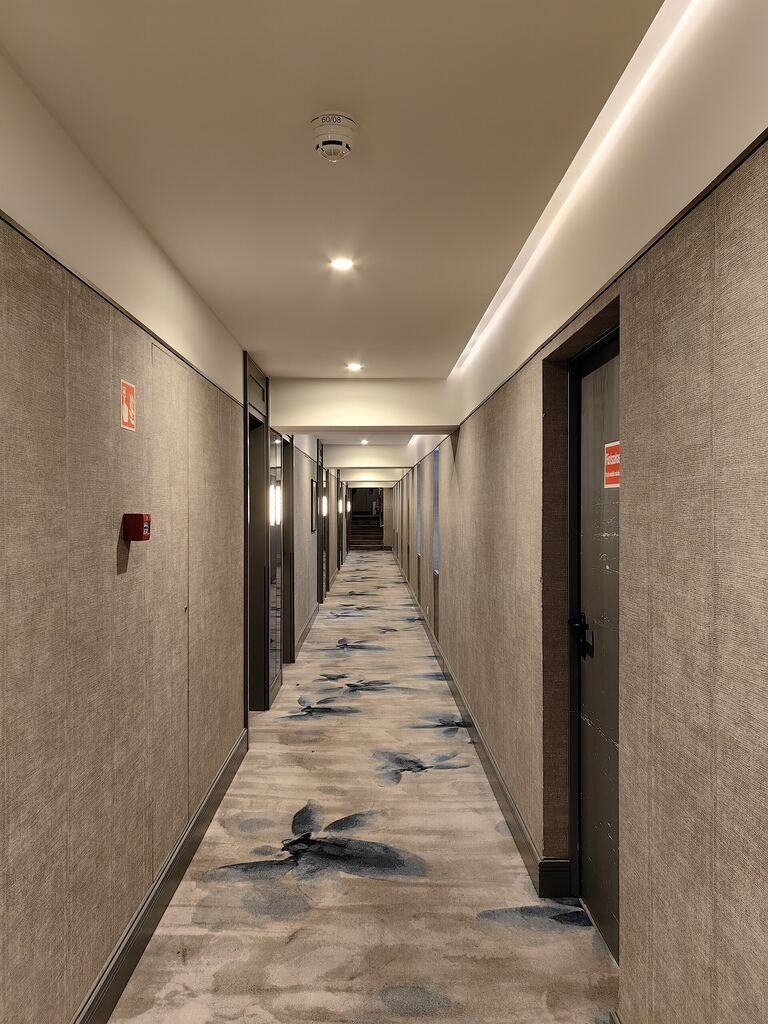

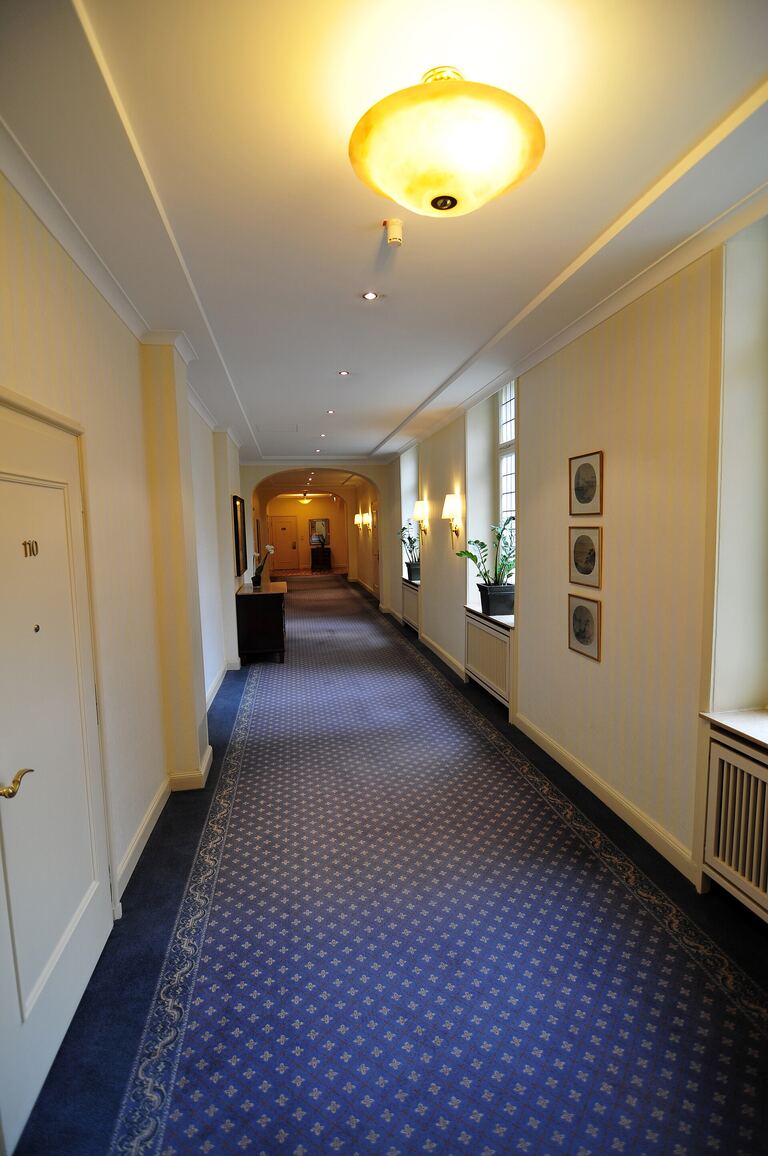

Door sets in place.
